- 規格型號：75758053
- 頻率：32.768kHz
- 尺寸：2012mm
- 產品描述：NX2012SA-32.768KHZ-EXS00A-MU00527,NDK品牌晶振,2012音叉晶振,以32.768KHZ核心頻率為核心競爭力,專為需要精準計時的電子系統提供穩定時鐘信號.產品采用先進的光刻工藝與封裝技術,體積小巧且機械強度高,能有效應對運輸...
NX2012SA-32.768KHZ-EXS00A-MU00527,NDK品牌晶振,2012音叉晶振
.png)
.png)
NX2012SA-32.768KHZ-EXS00A-MU00527,NDK品牌晶振,2012音叉晶振
NX2012SA-32.768KHZ-EXS00A-MU00527是NDK品牌旗下的高性能2012小型貼片晶振封裝音叉晶振,核心頻率精準鎖定32.768KHZ,專為對時間基準要求嚴苛的電子設備設計.采用優質音叉結構材質,具備出色的頻率穩定性,能有效抵御溫度波動與環境干擾,確保信號輸出的一致性.其2012迷你封裝規格,可大幅節省PCB板空間,適配各類小型化,輕薄化電子終端,廣泛應用于智能手機,智能手表等便攜式設備的計時模塊.
.png)
NX2012SA-32.768KHZ-EXS00A-MU00527,NDK品牌晶振,2012音叉晶振
| 原廠型號 Originalmodel： | NX2012SA-32.768KHZ-EXS00A-MU00527 | 品牌brand： | NDK |
| 品牌brand： | NDK | 高度PackageHeight： | 0.55mm |
| 型號名稱 Modelname： | NX2012SA | 溫度OperatingTemperature | -40+85℃ |
| Type系列： | KHz Crystal | 腳位Termination： | 4-Pad |
| 頻率 frequency： | 32.768KHz音叉晶振 | 封裝類型PackageType： | 4-Smd |
| frequencytolerance頻率容差 | 20PP | 最小包裝數MPQ： | 3000 |
| Loadcapacitance 負載電容 | 6PF | Packaging 包裝 | TapeandReel |

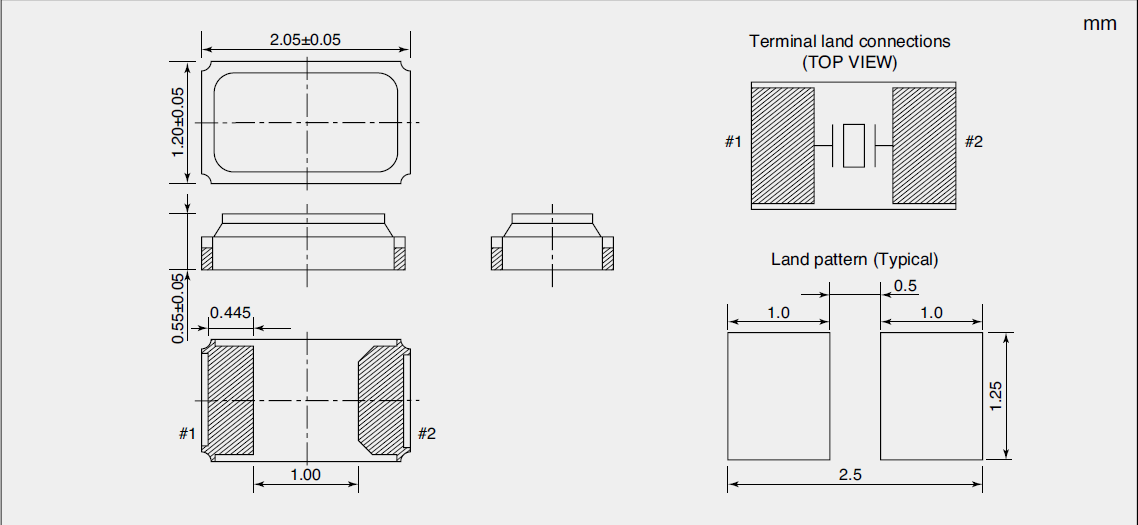

| Size/Dimension尺寸 | 2012mm | 安裝方式 Installation： | Surfacemount |
.png)
NX2012SA-32.768KHZ-EXS00A-MU00527,NDK品牌晶振,2012音叉晶振
NX2012SA-32.768KHZ-EXS00A-MU00527,NDK品牌晶振,2012音叉晶振
| NZ1612SH | 12MHZ | NSC5152A | NZ1612SH-12.000MHZ-NSC5152A | 1.6x1.2 |
| NZ1612SH | 12.288MHZ | NSC5152A | NZ1612SH-12.288MHZ-NSC5152A | 1.6x1.2 |
| NZ1612SH | 13MHZ | NSC5152A | NZ1612SH-13.000MHZ-NSC5152A | 1.6x1.2 |
| NZ1612SH | 16MHZ | NSC5152A | NZ1612SH-16.000MHZ-NSC5152A | 1.6x1.2 |
| NZ1612SH | 19.2MHZ | NSC5152A | NZ1612SH-19.200MHZ-NSC5152A | 1.6x1.2 |
| NZ1612SH | 20MHZ | NSC5152A | NZ1612SH-20MHZ-NSC5152A | 1.6x1.2 |
| NZ1612SH | 24MHZ | NSC5152A | NZ1612SH-24MHZ-NSC5152A | 1.6x1.2 |
| NZ1612SH | 25MHZ | NSC5152A | NZ1612SH-25MHZ-NSC5152A | 1.6x1.2 |
| NZ1612SH | 26MHZ | NSC5152A | NZ1612SH-26MHZ-NSC5152A | 1.6x1.2 |
| NZ1612SH | 40MHZ | NSC5152A | NZ1612SH-40MHZ-NSC5152A | 1.6x1.2 |
| NZ1612SH | 48MHZ | NSC5152A | NZ1612SH-48MHZ-NSC5152A | 1.6x1.2 |
| NZ1612SH | 50MHZ | NSC5152A | NZ1612SH-50MHZ-NSC5152A | 1.6x1.2 |
| NZ1612SH | 52MHZ | NSC5152A | NZ1612SH-52MHZ-NSC5152A | 1.6x1.2 |
| NZ1612SH | 80MHZ | NSC5152A | NZ1612SH-80MHZ-NSC5152A | 1.6x1.2 |
| NZ1612SH | 12MHZ | NSC5152B | NZ1612SH-12MHZ-NSC5152B | 1.6x1.2 |
| NZ1612SH | 12.288MHZ | NSC5152B | NZ1612SH-12.288MHZ-NSC5152B | 1.6x1.2 |
| NZ1612SH | 13MHZ | NSC5152B | NZ1612SH-13MHZ-NSC5152B | 1.6x1.2 |
| NZ1612SH | 16MHZ | NSC5152B | NZ1612SH-16MHZ-NSC5152B | 1.6x1.2 |
| NZ1612SH | 19.2MHZ | NSC5152B | NZ1612SH-19.2MHZ-NSC5152B | 1.6x1.2 |
| NZ1612SH | 20MHZ | NSC5152B | NZ1612SH-20MHZ-NSC5152B | 1.6x1.2 |
| NZ1612SH | 24MHZ | NSC5152B | NZ1612SH-24MHZ-NSC5152B | 1.6x1.2 |
| NZ1612SH | 25MHZ | NSC5152B | NZ1612SH-25MHZ-NSC5152B | 1.6x1.2 |
| NZ1612SH | 26MHZ | NSC5152B | NZ1612SH-26MHZ-NSC5152B | 1.6x1.2 |
| NZ1612SH | 40MHZ | NSC5152B | NZ1612SH-40MHZ-NSC5152B | 1.6x1.2 |
| NZ1612SH | 48MHZ | NSC5152B | NZ1612SH-48MHZ-NSC5152B | 1.6x1.2 |
| NZ1612SH | 50MHZ | NSC5152B | NZ1612SH-50MHZ-NSC5152B | 1.6x1.2 |
| NZ1612SH | 52MHZ | NSC5152B | NZ1612SH-52MHZ-NSC5152B | 1.6x1.2 |
| NZ1612SH | 80MHZ | NSC5152B | NZ1612SH-80MHZ-NSC5152B | 1.6x1.2 |
| NZ1612SH | 12MHZ | NSC5152C | NZ1612SH-12MHZ-NSC5152C | 1.6x1.2 |
| NZ1612SH | 12.288MHZ | NSC5152C | NZ1612SH-12.288MHZ-NSC5152C | 1.6x1.2 |
| NZ1612SH | 13MHZ | NSC5152C | NZ1612SH-13MHZ-NSC5152C | 1.6x1.2 |
| NZ1612SH | 16MHZ | NSC5152C | NZ1612SH-16MHZ-NSC5152C | 1.6x1.2 |
| NZ1612SH | 19.2MHZ | NSC5152C | NZ1612SH-19.2MHZ-NSC5152C | 1.6x1.2 |
| NZ1612SH | 20MHZ | NSC5152C | NZ1612SH-20MHZ-NSC5152C | 1.6x1.2 |
| NZ1612SH | 24MHZ | NSC5152C | NZ1612SH-24MHZ-NSC5152C | 1.6x1.2 |
| NZ1612SH | 25MHZ | NSC5152C | NZ1612SH-25MHZ-NSC5152C | 1.6x1.2 |
| NZ1612SH | 26MHZ | NSC5152C | NZ1612SH-26MHZ-NSC5152C | 1.6x1.2 |
| NZ1612SH | 40MHZ | NSC5152C | NZ1612SH-40MHZ-NSC5152C | 1.6x1.2 |
| NZ1612SH | 48MHZ | NSC5152C | NZ1612SH-48MHZ-NSC5152C | 1.6x1.2 |
| NZ1612SH | 50MHZ | NSC5152C | NZ1612SH-50MHZ-NSC5152C | 1.6x1.2 |
| NZ1612SH | 52MHZ | NSC5152C | NZ1612SH-52MHZ-NSC5152C | 1.6x1.2 |
| NZ1612SH | 80MHZ | NSC5152C | NZ1612SH-80MHZ-NSC5152C | 1.6x1.2 |
| NZ1612SH | 12MHZ | NSC5152D | NZ1612SH-12MHZ-NSC5152D | 1.6x1.2 |
| NZ1612SH | 12.288MHZ | NSC5152D | NZ1612SH-12.288MHZ-NSC5152D | 1.6x1.2 |
| NZ1612SH | 13MHZ | NSC5152D | NZ1612SH-13MHZ-NSC5152D | 1.6x1.2 |
| NZ1612SH | 16MHZ | NSC5152D | NZ1612SH-16MHZ-NSC5152D | 1.6x1.2 |
| NZ1612SH | 19.2MHZ | NSC5152D | NZ1612SH-19.2MHZ-NSC5152D | 1.6x1.2 |
| NZ1612SH | 20MHZ | NSC5152D | NZ1612SH-20MHZ-NSC5152D | 1.6x1.2 |
| NZ1612SH | 24MHZ | NSC5152D | NZ1612SH-24MHZ-NSC5152D | 1.6x1.2 |
| NZ1612SH | 25MHZ | NSC5152D | NZ1612SH-25MHZ-NSC5152D | 1.6x1.2 |
| NZ1612SH | 26MHZ | NSC5152D | NZ1612SH-26MHZ-NSC5152D | 1.6x1.2 |
| NZ1612SH | 40MHZ | NSC5152D | NZ1612SH-40MHZ-NSC5152D | 1.6x1.2 |
| NZ1612SH | 48MHZ | NSC5152D | NZ1612SH-48MHZ-NSC5152D | 1.6x1.2 |
| NZ1612SH | 50MHZ | NSC5152D | NZ1612SH-50MHZ-NSC5152D | 1.6x1.2 |
| NZ1612SH | 52MHZ | NSC5152D | NZ1612SH-52MHZ-NSC5152D | 1.6x1.2 |
| NZ1612SH | 80MHZ | NSC5152D | NZ1612SH-80MHZ-NSC5152D | 1.6x1.2 |
| NZ1612SH | 12MHZ | NSC5103A | NZ1612SH-12MHZ-NSC5103A | 1.6x1.2 |
| NZ1612SH | 12.288MHZ | NSC5103A | NZ1612SH-12.288MHZ-NSC5103A | 1.6x1.2 |
| NZ1612SH | 13MHZ | NSC5103A | NZ1612SH-13MHZ-NSC5103A | 1.6x1.2 |
| NZ1612SH | 16MHZ | NSC5103A | NZ1612SH-16MHZ-NSC5103A | 1.6x1.2 |
