- 規格型號：36710716
- 頻率：38.4MHz
- 尺寸：2520mm
- 產品描述：ABRACON低損耗晶體,ABM10-165-38.400MHZ-T3環保晶振,ABM10智能手表晶振，美國Abracon晶振公司，艾博康晶振，石英晶體，進口晶振，ABM10-165-38.400MHZ-T3晶振，無源晶振，美國晶振，高品質晶振，低損耗晶振，艾博康晶...

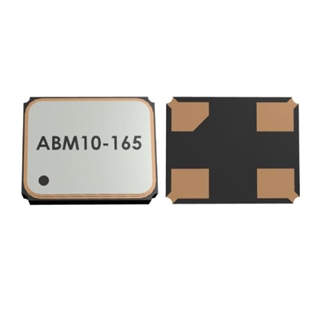

ABRACON低損耗晶體,ABM10-165-38.400MHZ-T3環保晶振,ABM10智能手表晶振
.jpg)
ABRACON低損耗晶體,ABM10-165-38.400MHZ-T3環保晶振,ABM10智能手表晶振，美國Abracon晶振公司，艾博康晶振，石英晶體，進口晶振，ABM10-165-38.400MHZ-T3晶振，無源晶振，美國晶振，高品質晶振，低損耗晶振，艾博康晶振，高精度晶振，2520晶振，四腳晶振，貼片晶振。適用于RoHS回流配置文件，在-10至+60ºC范圍內提供±10ppm的緊密穩定性，Seam密封陶瓷封裝確保高精度和可靠性，藍牙，無線應用，計算機，調制解調器，微處理器，通信，測試設備，便攜式收音機和MP3播放器
| 參數 | Minimum | Typical | Maximum | Units | Notes |
| 頻率范圍 | 12.000 | 55.000 | MHz | Fundamental | |
| 工作模式 | Fundamental | ||||
| 工作溫度 | -10 | +60 | ºC | See options | |
| 儲存溫度 | -40 | +125 | ºC | ||
| 頻率容差 | ±20 | ppm | See options | ||
| 頻率穩定度 | ±30 | ppm | See options | ||
| 等效串聯電阻 | See table 1 below | ||||
| 分流電容 | 7 | pF | |||
| 負載電容 | 10 | pF | Standard (See options if other than STD) | ||
| 驅動電平 | 10 | 100 | µW | ||
| 老化 | ±5 | ppm | First year | ||
| 絕緣電阻 | 500 | M | @ 100Vdc ± 15V | ||
ABRACON低損耗晶體,ABM10-165-38.400MHZ-T3環保晶振,ABM10智能手表晶振
| 編碼 | 品牌 | 型號 | 頻率 | 頻率穩定度 | 頻率容差 | 負載 |
| ABM10-14.31818MHZ-18-E30-T3 | Abracon | ABM10 | 14.31818 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM10-16.000MHZ-18-E30-T3 | Abracon | ABM10 | 16 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM10-16.000MHZ-D30-T3 | Abracon | ABM10 | 16 MHz | ±30ppm | ±20ppm | 10 pF |
| ABM10-16.000MHZ-E20-T | Abracon | ABM10 | 16 MHz | ±20ppm | ±20ppm | 10 pF |
| ABM10-16.3676MHZ-D30-T3 | Abracon | ABM10 | 16.3676 MHz | ±30ppm | ±20ppm | 10 pF |
| ABM10-16.3676MHZ-E20-T | Abracon | ABM10 | 16.3676 MHz | ±20ppm | ±20ppm | 10 pF |
| ABM10-16.384MHZ-D30-T3 | Abracon | ABM10 | 16.384 MHz | ±30ppm | ±20ppm | 10 pF |
| ABM10-16.384MHZ-E20-T | Abracon | ABM10 | 16.384 MHz | ±20ppm | ±20ppm | 10 pF |
| ABM10-165-38.400MHZ-T3 | Abracon | ABM10 | 38.4 MHz | 10 pF | ||
| ABM10-166-12.000MHZ-T3 | Abracon | ABM10 | 12 MHz | ±10ppm | ±10ppm | 8 pF |
| ABM10-167-12.000MHZ-T3 | Abracon | ABM10 | 12 MHz | ±30ppm | ±10ppm | 8 pF |
| ABM10-18.432MHZ-D30-T3 | Abracon | ABM10 | 18.432 MHz | ±30ppm | ±20ppm | 10 pF |
| ABM10-18.432MHZ-E20-T | Abracon | ABM10 | 18.432 MHz | ±20ppm | ±20ppm | 10 pF |
| ABM10-19.200MHZ-D30-T3 | Abracon | ABM10 | 19.2 MHz | ±30ppm | ±20ppm | 10 pF |
| ABM10-19.200MHZ-E20-T | Abracon | ABM10 | 19.2 MHz | ±20ppm | ±20ppm | 10 pF |
| ABM10-20.000MHZ-18-E30-T3 | Abracon | ABM10 | 20 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM10-20.000MHZ-D30-T3 | Abracon | ABM10 | 20 MHz | ±30ppm | ±20ppm | 10 pF |
| ABM10-20.000MHZ-E20-T | Abracon | ABM10 | 20 MHz | ±20ppm | ±20ppm | 10 pF |
| ABM10-22.1184MHZ-D30-T3 | Abracon | ABM10 | 22.1184 MHz | ±30ppm | ±20ppm | 10 pF |
| ABM10-22.1184MHZ-E20-T | Abracon | ABM10 | 22.1184 MHz | ±20ppm | ±20ppm | 10 pF |
| ABM10-24.000MHZ-18-E30-T3 | Abracon | ABM10 | 24 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM10-24.000MHZ-8-7-A15-T | Abracon | ABM10 | 24 MHz | ±15ppm | ±15ppm | 8 pF |
| ABM10-24.000MHZ-D30-T3 | Abracon | ABM10 | 24 MHz | ±30ppm | ±20ppm | 10 pF |
| ABM10-24.000MHZ-E20-T | Abracon | ABM10 | 24 MHz | ±20ppm | ±20ppm | 10 pF |
| ABM10-24.576MHZ-D30-T3 | Abracon | ABM10 | 24.576 MHz | ±30ppm | ±20ppm | 10 pF |
| ABM10-24.576MHZ-E20-T | Abracon | ABM10 | 24.576 MHz | ±20ppm | ±20ppm | 10 pF |
| ABM10-25.000MHZ-18-E30-T3 | Abracon | ABM10 | 25 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM10-25.000MHZ-D30-T3 | Abracon | ABM10 | 25 MHz | ±30ppm | ±20ppm | 10 pF |
| ABM10-25.000MHZ-E20-T | Abracon | ABM10 | 25 MHz | ±20ppm | ±20ppm | 10 pF |
| ABM10-26.000MHZ-7-A15-T | Abracon | ABM10 | 26 MHz | ±15ppm | ±15ppm | 10 pF |
| ABM10-26.000MHZ-D30-T3 | Abracon | ABM10 | 26 MHz | ±30ppm | ±20ppm | 10 pF |
| ABM10-27.000MHZ-D30-T3 | Abracon | ABM10 | 27 MHz | ±30ppm | ±20ppm | 10 pF |
| ABM10-27.000MHZ-E20-T | Abracon | ABM10 | 27 MHz | ±20ppm | ±20ppm | 10 pF |
| ABM10-27.120MHZ-8-A10-T | Abracon | ABM10 | 27.12 MHz | ±10ppm | ±20ppm | 8 pF |
| ABM10-28.63636MHZ-8-7-A15-T | Abracon | ABM10 | 28.63636 MHz | ±15ppm | ±15ppm | 8 pF |
| ABM10-30.000MHZ-D30-T3 | Abracon | ABM10 | 30 MHz | ±30ppm | ±20ppm | 10 pF |
| ABM10-30.000MHZ-E20-T | Abracon | ABM10 | 30 MHz | ±20ppm | ±20ppm | 10 pF |
| ABM10-32.000MHZ-7-A15-T | Abracon | ABM10 | 32 MHz | ±15ppm | ±15ppm | 10 pF |
| ABM10-32.000MHZ-8-7-A15-T | Abracon | ABM10 | 32 MHz | ±15ppm | ±15ppm | 8 pF |
| ABM10-32.000MHZ-D30-T3 | Abracon | ABM10 | 32 MHz | ±30ppm | ±20ppm | 10 pF |
| ABM10-38.400MHZ-18-E30-T3 | Abracon | ABM10 | 38.4 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM10-40.000MHZ-18-E30-T3 | Abracon | ABM10 | 40 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM10-40.000MHZ-8-7-A15-T | Abracon | ABM10 | 40 MHz | ±15ppm | ±15ppm | 8 pF |
| ABM10-40.000MHZ-D30-T3 | Abracon | ABM10 | 40 MHz | ±30ppm | ±20ppm | 10 pF |
| ABM10-40.000MHZ-E20-T | Abracon | ABM10 | 40 MHz | ±20ppm | ±20ppm | 10 pF |
| ABM10-48.000MHZ-18-E30-T3 | Abracon | ABM10 | 48 MHz | ±30ppm | ±20ppm | 18 pF |
| ABM10-48.000MHZ-D30-T3 | Abracon | ABM10 | 48 MHz | ±30ppm | ±20ppm | 10 pF |
| ABM10-48.000MHZ-E20-T | Abracon | ABM10 | 48 MHz | ±20ppm | ±20ppm | 10 pF |
