規格型號：31700650
頻率：40.0000MHz
尺寸：7050mm
PDF

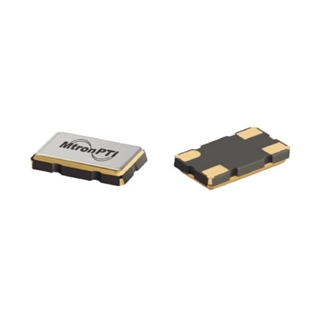

產品描述：CMO3BMC-40.000MHZ,Mtronpti有源晶振,7050貼片封裝晶振,40.000MHZ高頻精準輸出,有源設計讓晶振在寬溫環境(-40℃~85℃)下仍能穩定工作,滿足極端工況需求.產品經過嚴格的可靠性測試,具備抗振動,抗沖擊特性.

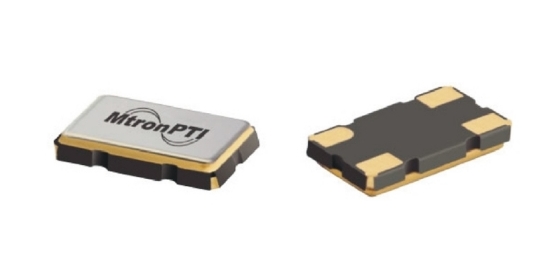

CMO3BMC-40.000MHZ,Mtronpti有源晶振,7050貼片封裝晶振

高精密CMO3BMC-40.000MHZ有源晶振,源自Mtronpti品牌品質保障,7050封裝晶振形式便于自動化貼裝生產,大幅提升產能效率.核心參數搭載40.000MHZ固定頻點,輸出信號純凈度高,相位噪聲低,能有效降低設備運行中的信號干擾問題.作為有源晶振,具備獨立驅動模塊,工作電壓范圍寬,適配多種電路環境,是物聯網,汽車電子,醫療設備等領域的理想時鐘部件.

CMO3BMC-40.000MHZ,Mtronpti有源晶振,7050貼片封裝晶振

原廠型號 Originalmodel：	CMO3BMC-40.000MHZ	品牌brand：	Mtronpti
Manufacturer品牌	進口MtronPTI晶振	OperatingTemperature溫度	-40+85℃
Series型號	CMO3BMC	Current-Supply(Max)	-
Type類型	XO	PackageHeight高度	1.9mm
Frequency頻率	40M	Termination 腳位	4-pad
輸出方式 Output：	CMOS	PackageType 封裝類型	4-smd
Voltage-Supply電壓	3.3V	Packaging 包裝	TapeandReel
FrequencyStability頻率穩定度	50PP	安裝方式 Installation：	Surfacemount

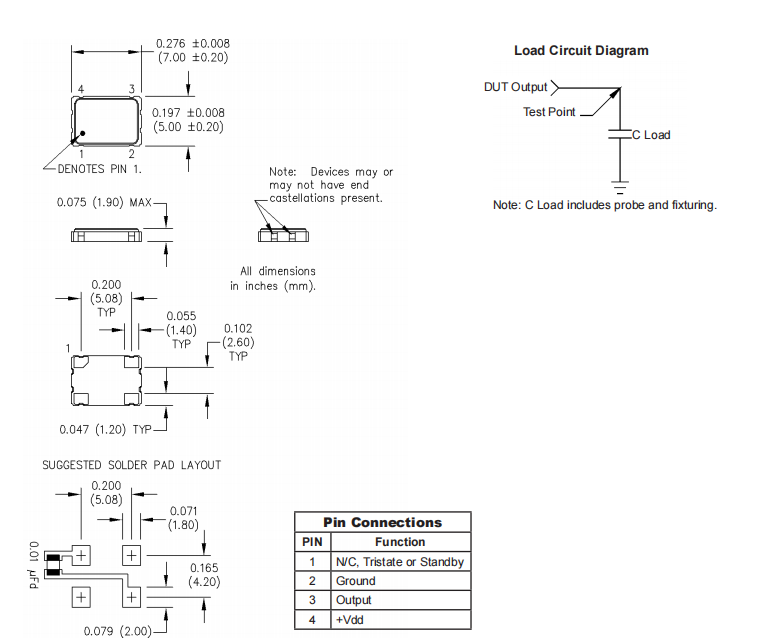

Size/Dimension尺寸	7050mm	最小包裝數MPQ：	1000

CMO3BMC-40.000MHZ,Mtronpti有源晶振,7050貼片封裝晶振

CMO3BMC-40.000MHZ,Mtronpti有源晶振,7050貼片封裝晶振

M3006S289 50.000000	MV3 and MV5	VCXO	±30 ppm	50	±30 ppm	5.0 x 7.0 mm
M3006S290 25.000000	MV3 and MV5	VCXO	±20 ppm	25	±20 ppm	5.0 x 7.0 mm
M3006S303 57.344000	MV3 and MV5	VCXO	±50 ppm	57.344	±50 ppm	5.0 x 7.0 mm
M3006S305 27.000000	MV3 and MV5	VCXO	±50 ppm	27	±50 ppm	5.0 x 7.0 mm
M3006S306 24.576000	MV3 and MV5	VCXO	±25 ppm	24.576	±25 ppm	5.0 x 7.0 mm
M3006S308 49.152000	MV3 and MV5	VCXO	±50 ppm	49.152	±50 ppm	5.0 x 7.0 mm
M3006S309 16.384000	MV3 and MV5	VCXO	±50 ppm	16.384	±50 ppm	5.0 x 7.0 mm
M302720TFCN 122.880000	M3027	VCXO	±40 ppm	122.88	±40 ppm	5.0 x 7.0 mm
M302720TGCN 32.768000	M3027	VCXO	±20 ppm	32.768	±20 ppm	5.0 x 7.0 mm
M302720TGCN 33.333300	M3027	VCXO	±20 ppm	33.3333	±20 ppm	5.0 x 7.0 mm
M302720TGCN 61.440000	M3027	VCXO	±20 ppm	61.44	±20 ppm	5.0 x 7.0 mm
M3027S003 161.525000	M3027	VCXO	±25 ppm	161.525	±25 ppm	5.0 x 7.0 mm
M3027S004 161.575000	M3027	VCXO	±25 ppm	161.575	±25 ppm	5.0 x 7.0 mm
M3027S005 70.656000	M3027	VCXO	±50 ppm	70.656	±50 ppm	5.0 x 7.0 mm
M3027S007 100.000000	M3027	VCXO	±50 ppm	100	±50 ppm	5.0 x 7.0 mm
M3028S002 153.600000	M3028	VCXO	±25 ppm	153.6	±25 ppm	5.0 x 7.0 mm
M3028S003 156.250000	M3028	VCXO	±50 ppm	156.25	±50 ppm	5.0 x 7.0 mm
M3028S004 122.880000	M3028	VCXO	±25 ppm	122.88	±25 ppm	5.0 x 7.0 mm
M3028S009 70.656000	M3028	VCXO	±50 ppm	70.656	±50 ppm	5.0 x 7.0 mm
M3100S071 614.400000	M310x	VCXO	±25 ppm	614.4	±25 ppm	5.0 x 7.0 mm
M3100S077 311.040000	M310x	VCXO	±100 ppm	311.04	±100 ppm	5.0 x 7.0 mm
M3100S094 80.000000	M310x	VCXO	±30 ppm	80	±25 ppm	5.0 x 7.0 mm
M3100S095 100.000000	M310x	VCXO	±30 ppm	100	±25 ppm	5.0 x 7.0 mm
M3100S105 90.000000	M310x	VCXO	±25 ppm	90	±25 ppm	5.0 x 7.0 mm
M3100S106 120.000000	M310x	VCXO	±50 ppm	120	±50 ppm	5.0 x 7.0 mm
M31002AGLC 156.250000	M310x	VCXO	±25 ppm	156.25	±25 ppm	5.0 x 7.0 mm
M31002AGLC 240.000000	M310x	VCXO	±25 ppm	240	±25 ppm	5.0 x 7.0 mm
M31002AGPC 153.000000	M310x	VCXO	±25 ppm	153	±25 ppm	5.0 x 7.0 mm
M31002AGPC 448.000000	M310x	VCXO	±25 ppm	448	±25 ppm	5.0 x 7.0 mm
M31002AGPN 1000.000000	M310x	VCXO	±25 ppm	1000	±25 ppm	5.0 x 7.0 mm
M31002AGPN 1024.000000	M310x	VCXO	±25 ppm	1024	±25 ppm	5.0 x 7.0 mm
M31002AGPN 1280.000000	M310x	VCXO	±25 ppm	1280	±25 ppm	5.0 x 7.0 mm
M31002AGPN 1360.000000	M310x	VCXO	±25 ppm	1360	±25 ppm	5.0 x 7.0 mm
M31006AGLC 1400.000000	M310x	VCXO	±25 ppm	1400	±25 ppm	5.0 x 7.0 mm
M31006AGLC 500.000000	M310x	VCXO	±25 ppm	500	±25 ppm	5.0 x 7.0 mm
M31006AGLN 1070.000000	M310x	VCXO	±25 ppm	1070	±25 ppm	5.0 x 7.0 mm
M31006AGLN 582.500000	M310x	VCXO	±25 ppm	582.5	±25 ppm	5.0 x 7.0 mm
M31006AGPC 200.000000	M310x	VCXO	±25 ppm	200	±25 ppm	5.0 x 7.0 mm
M31006AGPN 1400.000000	M310x	VCXO	±25 ppm	1400	±25 ppm	5.0 x 7.0 mm
M31006AUPC 400.000000	M310x	VCXO	±25 ppm	400	±25 ppm	5.0 x 7.0 mm
M3200S038 120.000000	M320x	VCXO	±25 ppm	120	±25 ppm	9.0 X 14.0 mm
M32001DUPJ 130.000000	M320x	VCXO	±25 ppm	130	±25 ppm	9.0 X 14.0 mm
M32001DUPJ 260.000000	M320x	VCXO	±25 ppm	260	±25 ppm	9.0 X 14.0 mm
M32001DUPJ 80.000000	M320x	VCXO	±25 ppm	80	±25 ppm	9.0 X 14.0 mm
M32002AGCJ 40.000000	M320x	VCXO	±25 ppm	40	±25 ppm	9.0 X 14.0 mm
M32002AGPJ 240.000000	M320x	VCXO	±25 ppm	240	±25 ppm	9.0 X 14.0 mm
M32002AGPJ 800.000000	M320x	VCXO	±25 ppm	800	±25 ppm	9.0 X 14.0 mm
M32002AGPJ 840.000000	M320x	VCXO	±25 ppm	840	±25 ppm	9.0 X 14.0 mm
M32002AMPJ 560.000000	M320x	VCXO	±25 ppm	560	±25 ppm	9.0 X 14.0 mm
M32002BGPJ 224.000000	M320x	VCXO	±25 ppm	224	±25 ppm	9.0 X 14.0 mm
M32002BGPJ 239.832000	M320x	VCXO	±25 ppm	239.832	±25 ppm	9.0 X 14.0 mm
M32002BGPJ 240.000000	M320x	VCXO	±25 ppm	240	±25 ppm	9.0 X 14.0 mm
M32002BGPJ 448.000000	M320x	VCXO	±25 ppm	448	±25 ppm	9.0 X 14.0 mm
M32002BGPJ 720.000000	M320x	VCXO	±25 ppm	720	±25 ppm	9.0 X 14.0 mm
M32002BUMJ 320.000000	M320x	VCXO	±25 ppm	320	±25 ppm	9.0 X 14.0 mm
M32002BUMJ 600.000000	M320x	VCXO	±25 ppm	600	±25 ppm	9.0 X 14.0 mm
M3905S001 19.440000	MV3 and MV5	VCXO	±50 ppm	19.44	±50 ppm	6-leaded
1073-005 20.000000	M3H and MH	XO	±100 ppm	20	±100 ppm	8-Pin DIP
1242-003 3.686400	M3H and MH	XO	±50 ppm	3.6864	±50 ppm	8-Pin DIP
1242-004 4.000000	M3H and MH	XO	±1000 ppm	4	±1000 ppm	8-Pin DIP
