- 規格型號：72319880
- 頻率：12 MHz
- 尺寸：3225mm
- 產品描述：ECS-120-18-33Q-DS,ECS貼片晶振,車載電子晶振,傳承品牌精密制造工藝,采用高品質晶體材質與抗老化封裝設計,頻率偏差小,長期穩定性強,確保車載系統長期運行的時序精準性.
ECS-120-18-33Q-DS,ECS貼片晶振,車載電子晶振
.png)
.png)
ECS-120-18-33Q-DS,ECS貼片晶振,車載電子晶振
專為車載電子設備量身定制的ECS-120-18-33Q-DS貼片晶振,精準適配車載信息娛樂系統,車載導航,車載通信模塊,ADAS輔助駕駛系統等核心部件的PCB布局.通過AEC-Q200車載電子元件認證,滿足車載場景對可靠性,耐久性的嚴苛要求,可在高低溫,振動,電壓波動等極端車況下穩定工作,是車載電子研發的核心時鐘部件.
.png)
ECS-120-18-33Q-DS,ECS貼片晶振,車載電子晶振
| 原廠型號 Originalmodel： | ECS-120-18-33Q-DS | 品牌brand： | ECS |
| 品牌brand： | ECS晶體諧振器 | 高度PackageHeight： | 1.2mm |
| 型號名稱 Modelname： | ECS-120 | 溫度OperatingTemperature | -40+125℃ |
| Type系列： | MHZ Crystal | 腳位Termination： | 4-Pad |
| 頻率 frequency： | 12M | 封裝類型PackageType： | 4-Smd |
| frequencytolerance頻率容差 | 30PP | 最小包裝數MPQ： | 3000 |
| Loadcapacitance 負載電容 | 18PF | Packaging 包裝 | TapeandReel |

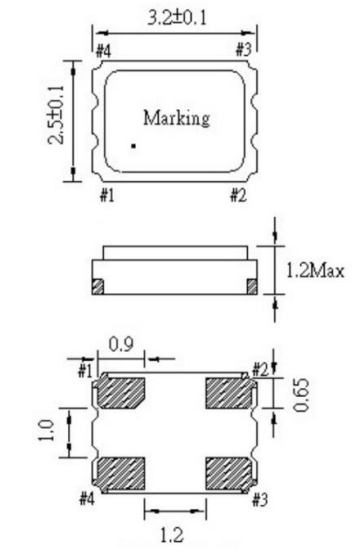

| Size/Dimension尺寸 | 3225mm | 安裝方式 Installation： | Surfacemount |
.png)
ECS-120-18-33Q-DS,ECS貼片晶振,車載電子晶振
ECS-120-18-33Q-DS,ECS貼片晶振,車載電子晶振
| XRCGB25M000F3M00R0 | Murata村田晶振 | XRCGB | 25 MHz | ±40ppm | ±30ppm | 6pF | 150 Ohms |
| XRCGB27M120F3M00R0 | Murata村田晶振 | XRCGB | 27.12 MHz | ±40ppm | ±30ppm | 6pF | 150 Ohms |
| XRCGB24M000F3M00R0 | Murata村田晶振 | XRCGB | 24 MHz | ±40ppm | ±30ppm | 6pF | 150 Ohms |
| XRCGB24M000F2P00R0 | Murata村田晶振 | XRCGB | 24 MHz | ±20ppm | ±20ppm | 6pF | 150 Ohms |
| XRCGB32M000F1H01R0 | Murata村田晶振 | - | 32 MHz | ±10ppm | ±10ppm | 8pF | 60 Ohms |
| XRCGB32M000F1H00R0 | Murata村田晶振 | XRCGB | 32 MHz | ±10ppm | ±10ppm | 6pF | 60 Ohms |
| XRCGB25M000F3A00R0 | Murata村田晶振 | XRCGB | 25 MHz | ±35ppm | ±35ppm | 6pF | 100 Ohms |
| XRCGB24M000F0L00R0 | Murata村田晶振 | XRCGB | 24 MHz | ±50ppm | ±100ppm | 6pF | 150 Ohms |
| XRCGB48M000F4M00R0 | Murata村田晶振 | XRCGB | 48 MHz | ±40ppm | ±45ppm | 6pF | 100 Ohms |
| XRCGB24M000F3N00R0 | Murata村田晶振 | XRCGB | 24 MHz | ±30ppm | ±30ppm | 6pF | 150 Ohms |
| XRCGB27M120F3M10R0 | Murata村田晶振 | XRCGB | 27.12 MHz | ±40ppm | ±30ppm | 10pF | 80 Ohms |
| XRCGB25M000F3M18R0 | Murata村田晶振 | - | 25 MHz | ±40ppm | ±30ppm | 12pF | 80 Ohms |
| XRCGB32M000F2P01R0 | Murata村田晶振 | - | 32 MHz | ±20ppm | ±20ppm | 8pF | 100 Ohms |
| XRCGB32M000F2P00R0 | Murata村田晶振 | XRCGB | 32 MHz | ±20ppm | ±20ppm | 6pF | 100 Ohms |
| XRCGB25M000F2P02R0 | Murata村田晶振 | - | 25 MHz | ±20ppm | ±20ppm | 10pF | 150 Ohms |
| XRCGB27M120F2P00R0 | Murata村田晶振 | XRCGB | 27.12 MHz | ±20ppm | ±20ppm | 6pF | 150 Ohms |
| XRCGB25M000F2P00R0 | Murata村田晶振 | XRCGB | 25 MHz | ±20ppm | ±20ppm | 6pF | 150 Ohms |
| XRCGB24M000F2P01R0 | Murata村田晶振 | - | 24 MHz | ±20ppm | ±20ppm | 8pF | 150 Ohms |
| XRCGB27M120F3M13R0 | Murata村田晶振 | - | 27.12 MHz | ±40ppm | ±30ppm | 10pF | 60 Ohms |
| XRCGB32M000F2P2CR0 | Murata村田晶振 | XRCGB | 32 MHz | ±20ppm | ±20ppm | 8pF | 70 Ohms |
| XRCGB32M000FBH50R0 | Murata村田晶振 | - | 32 MHz | ±10ppm | ±15ppm | 10pF | 60 Ohms |
| XRCGB24M000F2P91R0 | Murata村田晶振 | XRCGB | 24 MHz | ±20ppm | ±20ppm | 8pF | 60 Ohms |
| XRCGB16M000FXN00R0 | Murata村田晶振 | - | 16 MHz | ±40ppm | ±40ppm | 6pF | 200 Ohms |
| XRCGB32M000F1H02R0 | Murata村田晶振 | - | 32 MHz | ±10ppm | ±10ppm | 10pF | 60 Ohms |
| XRCGB32M000F1H19R0 | Murata村田晶振 | - | 32 MHz | ±10ppm | ±10ppm | 6pF | 50 Ohms |
| XRCGB40M000F5A00R0 | Murata村田晶振 | - | 40 MHz | ±65ppm | ±50ppm | 6pF | 70 Ohms |
| XRCGB24M000F3A00R0 | Murata村田晶振 | XRCGB | 24 MHz | ±35ppm | ±30ppm | 6pF | 120 Ohms |
| XRCGB27M120F3A00R0 | Murata村田晶振 | XRCGB | 27.12 MHz | ±35ppm | ±30ppm | 6pF | 80 Ohms |
| XRCGB25M000F3A01R0 | Murata村田晶振 | XRCGB | 25 MHz | ±35ppm | ±30ppm | 8pF | 100 Ohms |
| XRCGB48M000F5A00R0 | Murata村田晶振 | - | 48 MHz | ±65ppm | ±50ppm | 6pF | 60 Ohms |
| XRCGE25M000FBA1AR0 | Murata村田晶振 | XRCFD | 25 MHz | ±35ppm | ±15ppm | 6pF | 100 Ohms |
| XRCHA20M000F0A01R0 | Murata村田晶振 | XRCHA | 20 MHz | ±100ppm | ±100ppm | 8pF | 80 Ohms |
| XRCGB27M120F0L00R0 | Murata村田晶振 | - | 27.12 MHz | ±50ppm | ±100ppm | 6pF | 150 Ohms |
| XRCGB32M000F0L00R0 | Murata村田晶振 | - | 32 MHz | ±50ppm | ±100ppm | 6pF | 100 Ohms |
| XRCGB24M000FAN00R0 | Murata村田晶振 | XRCGB | 24 MHz | ±40ppm | ±25ppm | 6pF | 150 Ohms |
| XRCGB38M400F4M00R0 | Murata村田晶振 | - | 38.4 MHz | ±40ppm | ±45ppm | 6pF | 100 Ohms |
| XRCGB50M000F4M00R0 | Murata村田晶振 | - | 50 MHz | ±40ppm | ±45ppm | 6pF | 65 Ohms |
| XRCGB32M000F3M00R0 | Murata村田晶振 | - | 32 MHz | ±40ppm | ±30ppm | 6pF | 100 Ohms |
| XRCGB24M000F3M13R0 | Murata村田晶振 | XRCGB | 24 MHz | ±40ppm | ±30ppm | 6pF | 150 Ohms |
| XRCGB32M000F2P02R0 | Murata村田晶振 | - | 32 MHz | ±20ppm | ±20ppm | 10pF | 100 Ohms |
| XRCGB30M000F2P00R0 | Murata村田晶振 | XRCGB | 30 MHz | ±20ppm | ±20ppm | 6pF | 100 Ohms |
| XRCGB27M120F2P02R0 | Murata村田晶振 | - | 27.12 MHz | ±20ppm | ±20ppm | 10pF | 150 Ohms |
| XRCGB32M000F2P26R0 | Murata村田晶振 | - | 32 MHz | ±20ppm | ±20ppm | 5pF | 70 Ohms |
| XRCGB31M250F2P00R0 | Murata村田晶振 | XRCGB | 31.25 MHz | ±20ppm | ±20ppm | 6pF | 100 Ohms |
| XRCGB27M120F3G00R0 | Murata村田晶振 | - | 27.12 MHz | ±50ppm | ±30ppm | 6pF | 150 Ohms |
| XRCGB16M000FXN22R0 | Murata村田晶振 | XRCGB | 16 MHz | ±40ppm | ±40ppm | 8pF | 200 Ohms |
| XRCGB27M600F2C00R0 | Murata村田晶振 | - | 27.6 MHz | ±20ppm | ±20ppm | 6pF | 80 Ohms |
| XRCGB24M000F1H01R0 | Murata村田晶振 | - | 24 MHz | ±10ppm | ±10ppm | 8pF | 80 Ohms |
| XRCGB26M000F1H02R0 | Murata村田晶振 | - | 26 MHz | ±10ppm | ±10ppm | 10pF | 60 Ohms |
| XRCGB24M000F1H70R0 | Murata村田晶振 | - | 24 MHz | ±20ppm | ±10ppm | 6pF | 80 Ohms |
| XRCGB32M000F1H83R0 | Murata村田晶振 | - | 32 MHz | ±15ppm | ±10ppm | 9pF | 60 Ohms |
| XRCGE27M000FBA1AR0 | Murata村田晶振 | XRCGE | 27 MHz | ±35ppm | ±15ppm | 6pF | 80 Ohms |
| XRCGB26M000F3A00R0 | Murata村田晶振 | - | 26 MHz | ±35ppm | ±30ppm | 6pF | 80 Ohms |
| XRCGE26M000FBA1BR0 | Murata村田晶振 | XRCGE | 26 MHz | ±35ppm | ±15ppm | 8pF | 80 Ohms |
| XRCGE20M000F3A1AR0 | Murata村田晶振 | XRCFD | 20 MHz | ±45ppm | ±30ppm | 6pF | 150 Ohms |
| XRCGB24M000F2A01R0 | Murata村田晶振 | XRCGB | 24 MHz | ±35ppm | ±20ppm | 8pF | 120 Ohms |
| XRCGB27M120F3P00R0 | Murata村田晶振 | - | 27.12 MHz | ±20ppm | ±30ppm | 6pF | 150 Ohms |
| XRCGB32M000F2P55R0 | Murata村田晶振 | XRCGB | 32 MHz | ±20ppm | ±20ppm | 6pF | 80 Ohms |
| XRCPB26M000F2P00R0 | Murata村田晶振 | XRCPB | 26 MHz | ±20ppm | ±20ppm | 6pF | 150 Ohms |
| XRCGB32M000F1H18R0 | Murata村田晶振 | XRCFD | 32 MHz | ±15ppm | ±10ppm | 9pF | 40 Ohms |
