- 規格型號：82839780
- 頻率：32.768MHz
- 尺寸：3225mm
- 產品描述：LFXTAL065272RL3K,物聯網應用晶振,CFPX-180晶振,一款高頻高性能物聯網晶振,核心頻率覆蓋10MHz-50MHz,能為物聯網設備的無線通信模塊(如Wi-Fi,藍牙,LoRa)提供穩定的時鐘信號,保障數據傳輸的速率與準確性.
LFXTAL065272RL3K,物聯網應用晶振,CFPX-180晶振
.png)
.png)
LFXTAL065272RL3K,物聯網應用晶振,CFPX-180晶振
LFXTAL065272RL3K是專為物聯網專用場景設計的高穩定性晶振,核心頻率精準鎖定在32.768kHz,這一頻率是物聯網設備低功耗計時的黃金標準,能為智能穿戴設備晶振,無線傳感器等設備提供持續穩定的時間基準.該晶振采用超小型SMD封裝,尺寸僅為2.0mm×1.6mm,可輕松嵌入物聯網設備的微型PCB板中,有效節省空間資源.在功耗表現上,其典型工作電流低至1.0μA以下,配合寬電壓工作范圍(1.8V-3.6V),完美適配物聯網設備的電池供電需求,大幅延長設備續航時長.同時,它具備出色的溫度穩定性,在-40℃至+85℃的工業級溫度范圍內,頻率偏差可控制在±10ppm以內,確保在復雜環境(如戶外監控,工業物聯網節點)中仍能保持精準的信號輸出,為物聯網數據傳輸的時序同步提供可靠保障.
.png)

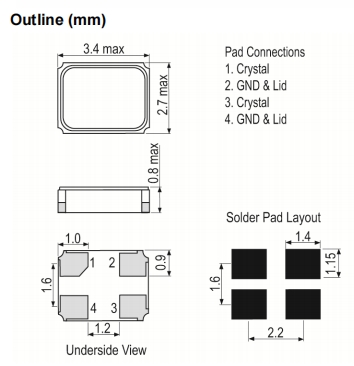

LFXTAL065272RL3K,物聯網應用晶振,CFPX-180晶振
| 原廠型號 Originalmodel： | LFXTAL065272RL3K | 品牌brand： | IQD晶振 |
| 品牌brand： | IQD高穩定性晶振 | ESR（等效串聯電阻）Resistance) | - |
| 型號名稱 Modelname： | CFPX-180 | 溫度OperatingTemperature | -40°C to 85°C |
| Type系列： | MHz Crystal | 腳位Termination： | 4pad |
| 頻率 frequency： | 32.768MHz | 封裝類型PackageType： | 4-SMD |
| FrequencyStability頻率穩定度 | ±50ppm | 高度PackageHeight： | 0.80mm |
| frequencytolerance頻率容差 | ±50ppm | 最小包裝數MPQ： | 3000 |
| Loadcapacitance 負載電容 | 20.00pF | 包裝Packaging： | TapeandReel |
| Size/Dimension尺寸 | 3225mm | 安裝方式MountingStyle： | SurfaceMount |
.png)
LFXTAL065272RL3K,物聯網應用晶振,CFPX-180晶振
LFXTAL065272RL3K,物聯網應用晶振,CFPX-180晶振
| LFXTAL081314Reel | IQXC-240 | 37.4MHz | ±7ppm | ±15ppm | -30°C to 85°C | 5.00pF |
| LFXTAL081316Reel | IQXC-240 | 38.4MHz | ±7ppm | ±15ppm | -30°C to 85°C | 5.00pF |
| LFXTAL072539Reel | IQXC-26 | 24.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL078691Cutt | IQXC-26 | 24.0MHz | ±10ppm | ±30ppm | -40°C to 85°C | 20.00pF |
| LFXTAL081608Cutt | IQXC-26 | 24.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL081608Reel | IQXC-26 | 24.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL081609Cutt | IQXC-26 | 25.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL083890Cutt | IQXC-26 | 25.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 20.00pF |
| LFXTAL052799Cutt | IQXC-26 | 26.0MHz | ±10ppm | ±30ppm | -40°C to 85°C | 10.00pF |
| LFXTAL066742Cutt | IQXC-26 | 26.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL066742Reel | IQXC-26 | 26.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL069296Cutt | IQXC-26 | 26.0MHz | ±15ppm | ±20ppm | -20°C to 70°C | 8.00pF |
| LFXTAL070729Cutt | IQXC-26 | 26.0MHz | ±10ppm | ±15ppm | -20°C to 70°C | 12.00pF |
| LFXTAL081614Cutt | IQXC-26 | 26.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL081614Reel | IQXC-26 | 26.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL072541Cutt | IQXC-26 | 27.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL072541Reel | IQXC-26 | 27.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL081610Cutt | IQXC-26 | 27.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL072302Cutt | IQXC-26 | 30.0MHz | ±15ppm | ±15ppm | 20°C to 70°C | 8.00pF |
| LFXTAL081612Cutt | IQXC-26 | 30.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL056523Cutt | IQXC-26 | 32.0MHz | ±20ppm | ±20ppm | -20°C to 70°C | 8.00pF |
| LFXTAL056523Reel | IQXC-26 | 32.0MHz | ±20ppm | ±20ppm | -20°C to 70°C | 8.00pF |
| LFXTAL069526Cutt | IQXC-26 | 32.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL069526Reel | IQXC-26 | 32.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL079322Cutt | IQXC-26 | 32.0MHz | ±10ppm | ±20ppm | -20°C to 70°C | 12.00pF |
| LFXTAL079322Reel | IQXC-26 | 32.0MHz | ±10ppm | ±20ppm | -20°C to 70°C | 12.00pF |
| LFXTAL081613Cutt | IQXC-26 | 32.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL083149Reel | IQXC-26 | 32.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 6.00pF |
| LFXTAL072304Cutt | IQXC-26 | 37.4MHz | ±15ppm | ±15ppm | 20°C to 70°C | 8.00pF |
| LFXTAL081616Cutt | IQXC-26 | 37.4MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL063312Cutt | IQXC-26 | 40.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 16.00pF |
| LFXTAL069527Cutt | IQXC-26 | 40.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL069527Reel | IQXC-26 | 40.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL081619Cutt | IQXC-26 | 40.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL069528Cutt | IQXC-26 | 48.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL069528Reel | IQXC-26 | 48.0MHz | ±15ppm | ±15ppm | -20°C to 70°C | 8.00pF |
| LFXTAL081620Cutt | IQXC-26 | 48.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL078795Cutt | IQXC-42 | 16.0MHz | ±15ppm | ±50ppm | -40°C to 85°C | 8.00pF |
| LFXTAL081780RL3K | IQXC-42 | 16.0MHz | ±10ppm | ±20ppm | -30°C to 85°C | 8.00pF |
| LFXTAL081781RL3K | IQXC-42 | 16.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL081821Cutt | IQXC-42 | 16.0MHz | ±10ppm | ±15ppm | -30°C to 85°C | 12.00pF |
| LFXTAL082887RL3K | IQXC-42 | 16.0MHz | ±10ppm | ±30ppm | -40°C to 105°C | 10.00pF |
| LFXTAL059585Cutt | IQXC-42 | 20.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL059585Reel | IQXC-42 | 20.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL059585RL3K | IQXC-42 | 20.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL064174RL3K | IQXC-42 | 24.0MHz | ±30ppm | ±30ppm | -40°C to 85°C | 12.00pF |
| LFXTAL066139Cutt | IQXC-42 | 24.0MHz | ±20ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL069476RL3K | IQXC-42 | 24.0MHz | ±10ppm | ±10ppm | -20°C to 75°C | 12.00pF |
| LFXTAL069493Cutt | IQXC-42 | 24.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL069493Reel | IQXC-42 | 24.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL069493RL3K | IQXC-42 | 24.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 10.00pF |
| LFXTAL072577RL3K | IQXC-42 | 24.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 18.00pF |
| LFXTAL076411Cutt | IQXC-42 | 24.0MHz | ±10ppm | ±10ppm | -20°C to 70°C | 10.00pF |
| LFXTAL076411RL3K | IQXC-42 | 24.0MHz | ±10ppm | ±10ppm | -20°C to 70°C | 10.00pF |
| LFXTAL081531RL3K | IQXC-42 | 24.0MHz | ±10ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL081646RL3K | IQXC-42 | 24.0MHz | ±15ppm | ±20ppm | -40°C to 85°C | 8.00pF |
| LFXTAL082123Cutt | IQXC-42 | 24.0MHz | ±10ppm | ±15ppm | -40°C to 85°C | 8.00pF |
| LFXTAL082123RL3K | IQXC-42 | 24.0MHz | ±10ppm | ±15ppm | -40°C to 85°C | 8.00pF |
| LFXTAL090516RL3K | IQXC-42 | 24.0MHz | ±50ppm | ±50ppm | -40°C to 85°C | 12.00pF |
| LFXTAL054026Cutt | IQXC-42 | 25.0MHz | ±25ppm | ±30ppm | -40°C to 85°C | 18.00pF |
