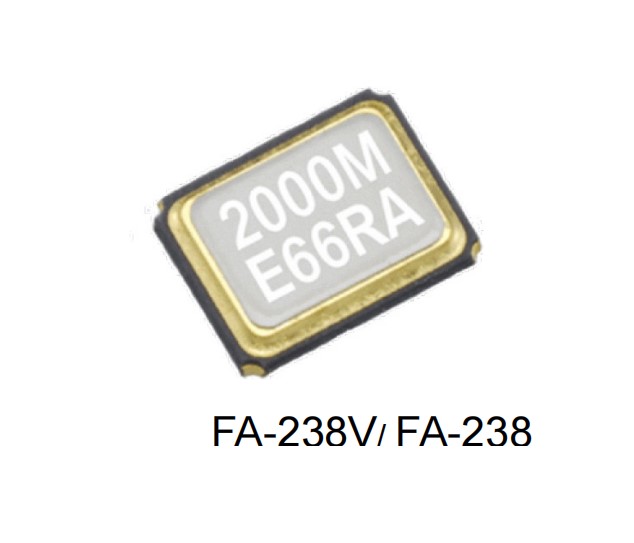

規格型號：63029006
頻率：12MHZ
尺寸：3.2*2.5mm
PDF
產品描述：Q22FA23V00193-FA-238V-12.5pF-主控板時鐘-12MHZ-3225mm，尺寸為3225mm，頻率為12MHZ，負載電容12.5pF，日本愛普生晶振，進口晶振，EPSON晶振，3225mm晶振，石英晶體諧振器，貼片晶振，石英晶體，手機專用晶振、無線局...

Q22FA23V00193-FA-238V-12.5pF-主控板時鐘-12MHZ-3225mm，尺寸為3225mm，頻率為12MHZ，負載電容12.5pF，日本愛普生晶振，進口晶振，EPSON晶振，3225mm晶振，石英晶體諧振器，貼片晶振，石英晶體，手機專用晶振、無線局域網晶振，主控板時鐘晶振，Q22FA23V00180晶振，Q22FA23V00197藍牙晶振。

貼片晶振產品主要應用：手機、藍牙、無線局域網: ISM波段無線電，主控板時鐘等領域.Q22FA23V00193-FA-238V-12.5pF-主控板時鐘-12MHZ-3225mm.

Q22FA23V00193-FA-238V-12.5pF-主控板時鐘-12MHZ-3225mm 參數表

項目

符號

For Clock

For RF Reference

條件

FA-238V

FA-238

TSX-3225

標稱頻率范圍

f_nom

12 MHz to
15.999 MHz

16 MHz to
50 MHz

16 MHz to
48 MHz

基本* 1
請與我們聯系可用的頻率。

儲存溫度

T_stg

-40 °C to +125 °C

作為單一產品存儲。

工作溫度

T_use

-40 °C to +85 °C (+105 °C)

請與我們聯系+85°C < T_use

驅動級別

200 µW Max.

建議:10µW

頻率公差

f_tol

±50 × 10-6 (standard),
(±15 × 10-6 to ±50 × 10-6 is available)

± 10 × 10-6

+25°C請與我們聯系
在本規范中列出。* 1

頻率和溫度特性

f_tem

±30 × 10-6/-20 °C to +70 °C

± 10 × 10-6/-20 °C to +75 °C

請聯系我們的要求未列出
這個規范。* 1

負載電容

7 pF to ∞

請說明。

運動阻力(ESR)

As per table below

-40 °C to +85 °C, DL = 100 µW

頻率老化

f_age

±5 × 10-6 / year Max.

± 1 × 10-6 / year Max.*2

+25°C，第一年year

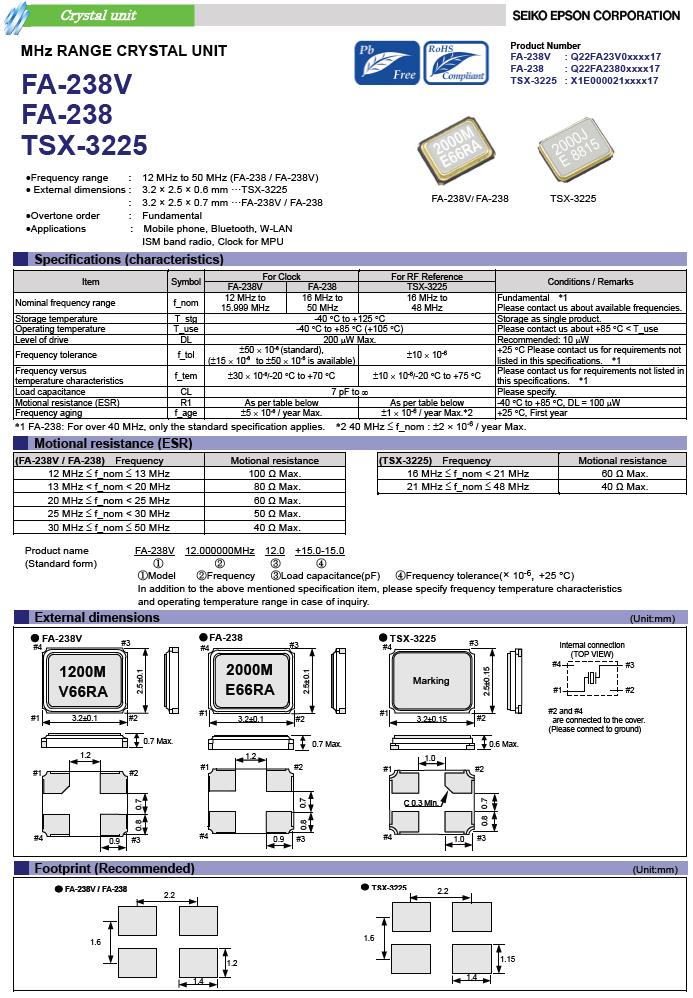

Q22FA23V00193-FA-238V-12.5pF-主控板時鐘-12MHZ-3225mm 尺寸圖

Q22FA23V00193晶振特點：

•頻率范圍:12MHz至50MHz (FA-238/FA-238V)

•外部尺寸:3.2×2.5×0.6mm···TSX-3225

···FA-238V/FA-238

•泛音順序:基本

更多相關的日本愛普生EPSON晶振型號

編碼	尺寸	型號	頻率	負載	頻率 @+25°C	工作溫度
Q22FA23V00012	3.2 x 2.5 x 0.7mm	FA-238V	13.560000 MHz	12 pF	+/-50 ppm	-40 to +80 °C
Q22FA23V00018	3.2 x 2.5 x 0.7mm	FA-238V	12.288000 MHz	12 pF	+/-50 ppm	-20 to +70 °C
Q22FA23V00022	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	10 pF	+/-30 ppm	-20 to +70 °C
Q22FA23V00026	3.2 x 2.5 x 0.7mm	FA-238V	13.000000 MHz	10 pF	+/-50 ppm	-20 to +70 °C
Q22FA23V00027	3.2 x 2.5 x 0.7mm	FA-238V	14.745600 MHz	20 pF	+/-50 ppm	-20 to +70 °C
Q22FA23V00028	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	15 pF	+/-50 ppm	-20 to +70 °C
Q22FA23V00029	3.2 x 2.5 x 0.7mm	FA-238V	13.000000 MHz	20 pF	+/-50 ppm	-20 to +70 °C
Q22FA23V00030	3.2 x 2.5 x 0.7mm	FA-238V	13.000000 MHz	20 pF	+/-30 ppm	-20 to +60 °C
Q22FA23V00033	3.2 x 2.5 x 0.7mm	FA-238V	12.288000 MHz	12 pF	+/-30 ppm	-20 to +70 °C
Q22FA23V00037	3.2 x 2.5 x 0.7mm	FA-238V	14.318180 MHz	20 pF	+/-50 ppm	-20 to +70 °C
Q22FA23V00044	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	20 pF	+/-50 ppm	-20 to +70 °C
Q22FA23V00048	3.2 x 2.5 x 0.7mm	FA-238V	13.000000 MHz	7 pF	+/-50 ppm	-20 to +70 °C
Q22FA23V00052	3.2 x 2.5 x 0.7mm	FA-238V	13.560000 MHz	10 pF	+/-50 ppm	-20 to +70 °C
Q22FA23V00068	3.2 x 2.5 x 0.7mm	FA-238V	14.318000 MHz	12 pF	+/-50 ppm	-20 to +70 °C
Q22FA23V00069	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	10 pF	+/-15 ppm	-20 to +70 °C
Q22FA23V00082	3.2 x 2.5 x 0.7mm	FA-238V	14.318180 MHz	16 pF	+/-50 ppm	-20 to +70 °C
Q22FA23V00085	3.2 x 2.5 x 0.7mm	FA-238V	12.288000 MHz	8 pF	+/-50 ppm	-20 to +70 °C
Q22FA23V00086	3.2 x 2.5 x 0.7mm	FA-238V	14.745600 MHz	12 pF	+/-50 ppm	-20 to +70 °C
Q22FA23V00095	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	16 pF	+/-50 ppm	-20 to +70 °C
Q22FA23V00103	3.2 x 2.5 x 0.7mm	FA-238V	14.318180 MHz	12.5 pF	+/-30 ppm	-20 to +70 °C
Q22FA23V00106	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	11 pF	+/-30 ppm	-20 to +70 °C
Q22FA23V00107	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	10 pF	+/-50 ppm	-40 to +85 °C
Q22FA23V00114	3.2 x 2.5 x 0.7mm	FA-238V	14.318180 MHz	18 pF	+/-50 ppm	-20 to +70 °C
Q22FA23V00119	3.2 x 2.5 x 0.7mm	FA-238V	12.500000 MHz	16 pF	+/-50 ppm	-20 to +70 °C
Q22FA23V00123	3.2 x 2.5 x 0.7mm	FA-238V	13.560000 MHz	12 pF	+/-20 ppm	-40 to +85 °C
Q22FA23V00131	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	18 pF	+/-50 ppm	-20 to +70 °C
Q22FA23V00136	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	8 pF	+/-50 ppm	-20 to +70 °C
Q22FA23V00144	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	10 pF	+/-15 ppm	-20 to +70 °C
Q22FA23V00149	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	20 pF	+/-30 ppm	-20 to +70 °C
Q22FA23V00150	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	10 pF	+/-10 ppm	-20 to +70 °C
Q22FA23V00160	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	16 pF	+/-30 ppm	-20 to +70 °C
Q22FA23V00162	3.2 x 2.5 x 0.7mm	FA-238V	12.288000 MHz	10 pF	+/-50 ppm	-20 to +70 °C
Q22FA23V00164	3.2 x 2.5 x 0.7mm	FA-238V	14.318180 MHz	9 pF	+/-50 ppm	-20 to +70 °C
Q22FA23V00170	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	12 pF	+/-30 ppm	-20 to +70 °C
Q22FA23V00178	3.2 x 2.5 x 0.7mm	FA-238V	13.560000 MHz	18 pF	+/-50 ppm	-20 to +70 °C
Q22FA23V00179	3.2 x 2.5 x 0.7mm	FA-238V石英晶體	12.500000 MHz	10 pF	+/-50 ppm	-20 to +70 °C
Q22FA23V00180	3.2 x 2.5 x 0.7mm	FA-238V	14.745600 MHz	16 pF	+/-50 ppm	-20 to +70 °C
Q22FA23V00192	3.2 x 2.5 x 0.7mm	FA-238V	12.288000 MHz	10 pF	+/-30 ppm	-20 to +70 °C
Q22FA23V00193	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	12.5 pF	+/-50 ppm	-20 to +70 °C
Q22FA23V00195	3.2 x 2.5 x 0.7mm	FA-238V	13.000000 MHz	9 pF	+/-20 ppm	-40 to +85 °C
Q22FA23V00197	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	8 pF	+/-15 ppm	-20 to +70 °C
Q22FA23V00205	3.2 x 2.5 x 0.7mm	FA-238V	14.745600 MHz	8 pF	+/-50 ppm	-20 to +70 °C
Q22FA23V00210	3.2 x 2.5 x 0.7mm	FA-238V	14.745600 MHz	18 pF	+/-50 ppm	-20 to +70 °C
Q22FA23V00233	3.2 x 2.5 x 0.7mm	FA-238V	14.318180 MHz	10 pF	+/-20 ppm	-20 to +70 °C
Q22FA23V00235	3.2 x 2.5 x 0.7mm	FA-238V	12.000000 MHz	9 pF	+/-30 ppm	-20 to +70 °C
Q22FA23V00239	3.2 x 2.5 x 0.7mm	FA-238V	14.318000 MHz	10 pF	+/-50 ppm	-20 to +70 °C
